Water Pumps WX WX10 WX10K1 AT WATJ-1100001-9999999 CASING (WX10K1) - Issaquah Honda Kubota

  1. Product Lines
  2. Water Pumps
  3. WX
  4. WX10
  5. WX10K1 AT WATJ-1100001-9999999

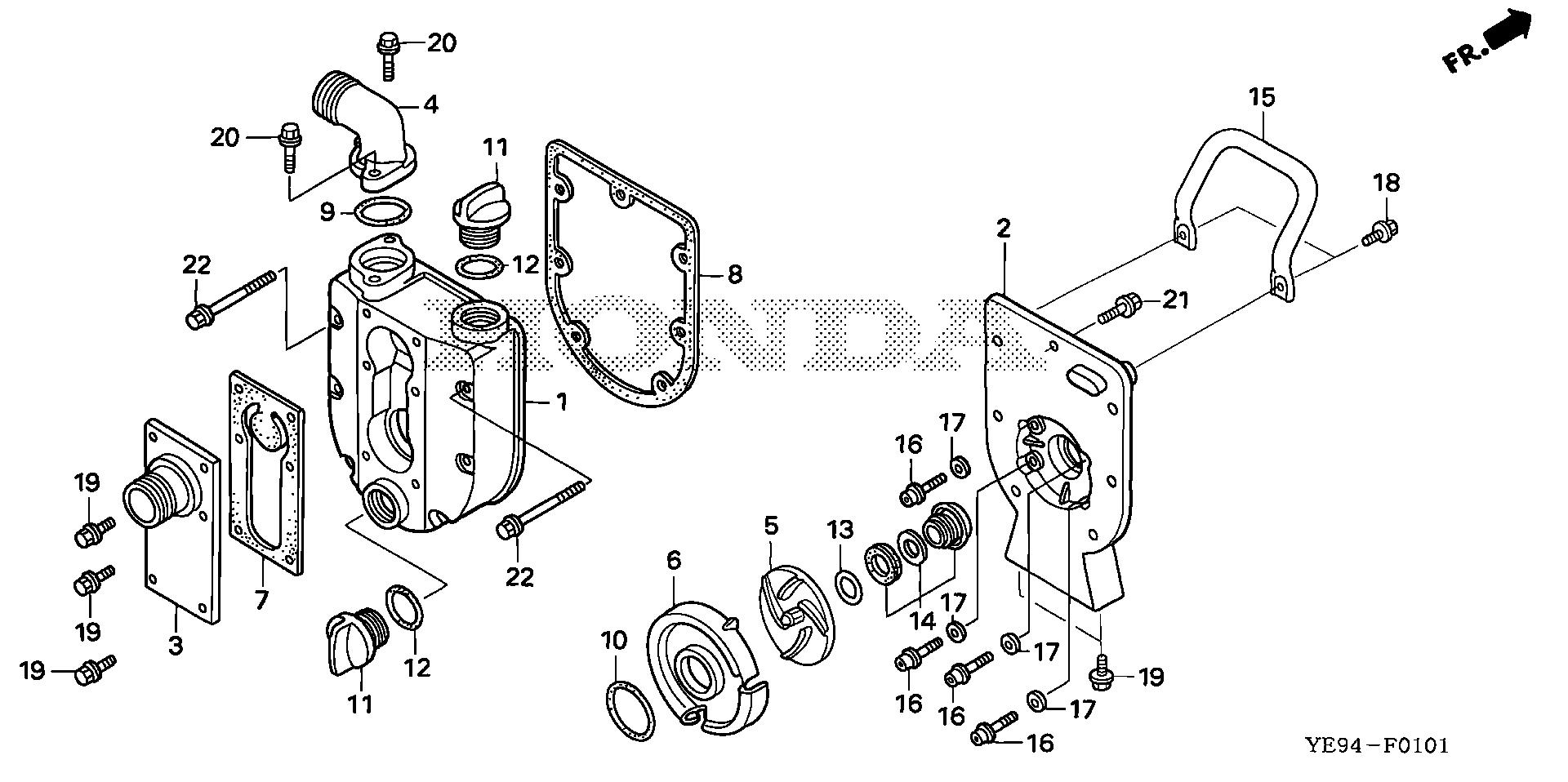

  6. CASING (WX10K1)

WARNING: California Prop 65 Information

Ref No
Part Number
Description
Serial Range
Qty
Price
Ref No
1
Part Number
 78101-YE9-505
Description
 CASING
Serial Range
 1000001 - 9999999
Qty
Price
 $111.75
Ref No
2
Part Number
 78102-YE9-506
Description
 PLATE, END
Serial Range
 1000001 - 9999999
Qty
Price
 $89.78
Ref No
3
Part Number
 78103-YE9-506
Description
 PLATE, SUCTION
Serial Range
 1000001 - 9999999
Qty
Price
 $44.42
Ref No
4
Part Number
 78104-YE9-506
Description
 PIPE, OUTLET
Serial Range
 1000001 - 9999999
Qty
Price
 $37.15
Ref No
5
Part Number
 78106-YE9-506
Description
 IMPELLER
Serial Range
 1000001 - 9999999
Qty
Price
 $26.22
Ref No
6
Part Number
 78107-YE9-506
Description
 CASE, VOLUTE
Serial Range
 1000001 - 9999999
Qty
Price
 $37.15
Ref No
7
Part Number
 78110-YE9-505
Description
 GASKET, SUCTION
Serial Range
 1000001 - 9999999
Qty
Price
 $13.86
Ref No
8
Part Number
 78112-YE9-505
Description
 GASKET, END PLATE
Serial Range
 1000001 - 9999999
Qty
Price
 $11.19
Ref No
9
Part Number
 78114-YE9-505
Description
 O-RING
Serial Range
 1000001 - 9999999
Qty
Price
 $8.05
Ref No
10
Part Number
 78115-YE9-505
Description
 RING A, SEAL
Serial Range
 1000001 - 9999999
Qty
Price
 $8.65
Ref No
11
Part Number
 78117-YB7-020
Description
 CAP, FILLER
Serial Range
 1000001 - 9999999
Qty
Price
 $22.87
Ref No
12
Part Number
 78118-YB0-003
Description
 RING, SEAL (B)
Serial Range
 1000001 - 9999999
Ref No
12
Part Number
 78118-YB0-004
Description
 RING, SEAL (B)
Serial Range
 1000001 - 9999999
Qty
Price
 $14.46
Ref No
13
Part Number
 78122-YE9-000
Description
 SHIM, ADJUSTER
Serial Range
 1000001 - 9999999
Ref No
13
Part Number
 78122-YH4-610
Description
 SHIM, ADJUSTER
Serial Range
 1000001 - 9999999
Qty
Price
 $4.52
Ref No
14
Part Number
 78130-YH4-611
Description
 SEAL ASSY., MECHANICAL
Serial Range
 1000001 - 9999999
Qty
Price
 $36.23
Ref No
15
Part Number
 78206-YE9-B00
Description
 HANDLE
Serial Range
 1000001 - 9999999
Ref No
16
Part Number
 90110-YE9-B00
Description
 BOLT, FLANGE SOCKET (5X35)
Serial Range
 1000001 - 9999999
Qty
Price
 $6.27
Ref No
17
Part Number
 90452-323-000
Description
 WASHER, SEALING (5MM)
Serial Range
 1000001 - 9999999
Ref No
18
Part Number
 95701-06012-00
Description
 BOLT, FLANGE (6X12)
Serial Range
 1000001 - 9999999
Qty
Price
 $5.00
Ref No
19
Part Number
 95701-06014-00
Description
 BOLT, FLANGE (6X14)
Serial Range
 1000001 - 9999999
Qty
Price
 $2.90
Ref No
20
Part Number
 95701-06018-00
Description
 BOLT, FLANGE (6X18)
Serial Range
 1000001 - 9999999
Qty
Price
 $4.08
Ref No
20
Part Number
 95701-06018-00
Description
 BOLT, FLANGE (6X18)
Serial Range
 1297385 - 9999999
Qty
Price
 $4.08
Ref No
21
Part Number
 95701-06018-00
Description
 BOLT, FLANGE (6X18)
Serial Range
 1000001 - 9999999
Qty
Price
 $4.08
Ref No
21
Part Number
 95701-06018-00
Description
 BOLT, FLANGE (6X18)
Serial Range
 1297385 - 9999999
Qty
Price
 $4.08
Ref No
22
Part Number
 95701-06055-00
Description
 BOLT, FLANGE (6X55)
Serial Range
 1297385 - 9999999
Qty
Price
 $4.76
